MAGNETIC DRILL, SPECIALLY MADE FOR TAPPING, TRM50HV
The Macstroc® Industrial Mag-Drill ‘TRM50HV’ is specially designed for tap- ping jobs of M6-M20 with the highest efficiency, as well as 50mm drilling capacity. Machine with external cooling device and fixed tapping guide bar which makes tapping work very easy and efficient.
MAGNETIC DRILLING MACHINE 35MM, STROC.35HV
Macstroc® Magnetic drill model ‘STROC.35HV’ for industrial use, it has a cutting capacity of up to 35mm with an integral auto-cooling function and a powerful new hi‐torque motor.
KEY FEATURES
Variable Speed Extendable height up to 220mm from work piece to spindle, enables to attach twist drill chuck and other accessories easily.High accuracy and low maintenanceMinimal vibration, weighs only 11kgMAGNETIC DRILLING MACHINE 50MM, STROC.50HV
Macstroc® industrial Mag-drill ‘STROC.50HV’ has a cutting capacity of up to
50mm with stepdown gear box , integral auto-cooling function, and supplied
with external cooling device. STROC.50HV is equipped with a powerful motor,
variable speed function, and the design ensures stable support, faster drilling
times and more accurate hole sizing.
KEY FEATURES
Variable Speed , Step down gear box
Stroke up to 220mm from work piece to spindle, enables to attach
twist drill chuck and other accessories easily.
Ensures stable support, faster drilling, low maintenance.
Minimal vibration, high accuracy and more cutter life.
MT3 spindle with integrated tool cooling and lubricationManual Drain cleaners
Drain Size: Cleans drain lines from 20mm-75mm [3/4″-3″] in diameter.
Unique design : Can connect with any Power drills or spin the drum manually.
Flexible soft shafts : are put in large metal drum to ensure cleaner and more convenient use.
Auto-Feed : It allows cable to self-feed down the drain.Simple in structure and easy-to-handle: Release the locking screw, insert a soft shaft of certain length into the pipe. latch the lock and rotate the handle, and press it, repeated operation will easily remove the pipe blockages.
It can also be driven by any Power drills.
Manual-Electric Combo RollGroover, COLT-12GX
MODEL: COLT-12GX
Suitable for mounting on Flare.2C, Flare.3C, or optionally for use in *RIDGID threading machines. It can also be operated manually using a ratchet.
1”-8” Sch. 10 /Sch40 steel pipes.
10”-12” Sch. 10/20 steel pipes
Standard dies: 1”-12” Roll Groove Set.
Max wall thickness : 8mm

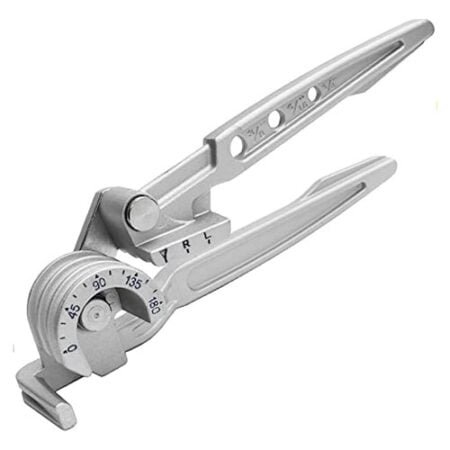

MULTI – TUBE BENDER
Ergonomic design, tube size measuring design, handle can be adjusted, and multi stepped bender grooves.
PERMANENT LIFTING MAGNETS
Safety factor 3.5+
Certified safety (Supplied with COC)
Suitable for flat and round objects
Suitable for rough or finished surfaces and
temperatures up to 80°C / 176 °F
Maintenance free
Reliable and consistent performance under
extreme conditions
Easy and single handle operation.PIPE BEVELING MACHINE
PIPE BEVELING MACHINE, M-BEVELER
The ID mounted Macstroc PIPE BEVELING MACHINES are Handy and lightweight portable beveller designed to create a perfect weld prep edge prior to joining. Machines be used efficiently by a single operator onsite, suitable for facing and bevel all type of pipe ends, pressure vessel and flanges. The “T” shape design of machines to work in the minimal radial working space. The machine is applicable in various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
PIPE CUTTING MACHINE, TERCEL.8 | TERCEL.12
PIPE CUTTING MACHINE, TERCEL.8 | TERCEL.12
The Electro-Hydraulic Pipe Cutter “Tercel.8” suitable to cut 2”-8” schedule 10/40 steel pipes or galvanized pipes. Theeasy feeding hydraulic hand pump enables the operator to cut the pipes with clean edge, no spark, abrasive dust and
open flame. The processed pipes can be threaded or grooved further. An induction motor ensures quiet operation.
The Heavy-duty design Electro-Hydraulic Pipe Cutter “Tercel.12” suitable to cut 2”-12” schedule 10/40 steel pipes or
galvanized pipes. The easy feeding hydraulic hand pump, and upgraded cutting wheels enable the operator to cut the
pipes with clean edge, no spark, abrasive dust or open flame.
