COMPACT THREADING MACHINE FLARE.3C
MODEL FLARE.3C THREADING MACHINE
Heavy-duty performance with 1500W motor. Portable/ Light-weight design.
Easy transport and set-up.
Self-Contained Oil System with adjustable flow control.the Macstroc FLARE.3C Threading Machine, a model characterized by heavy-duty performance driven by a potent 1500W motor. This threading machine boasts a portable and lightweight design, facilitating effortless transport and convenient setup.
Designed for efficiency, the FLARE.3C features a self-contained oil system with adjustable flow control, ensuring optimal lubrication during operations. This feature enhances the machine’s longevity and overall performance.
With its powerful motor, portable build, and thoughtful oil system, the Macstroc FLARE.3C Threading Machine exemplifies a dedication to both functionality and user convenience, making it a reliable choice for various threading tasks.
COMPACT THREADING MACHINE FLARE.4C
Heavy-duty performance with 1500W induction motor; Threads 1/4″-3/4″ at 36 RPM,. 1-2″ at 20 RPM, 2-1/2-4″ at 1l RPM. Easy transport with MH1500 stand CE standards. Available in UAE
DRAIN CLEANING MACHINE , XDM-K150
XDM-K150 is multifunctional and strong design suitable
for drain lines of Ø20-150mm (3/4″- 6″) .
• Uses different cables of Ø8mm (5/16″) ; 16mm(5/8″)
and Ø22mm(7/8”) .
• Ø8mm cable best for 20-70mm pipes, Ø16mm best for
32-100mm pipes, and Ø22mm use for 50-150mm
pipes.
• Cable clutch ensures operator control, pull handle
down and cable spins speed at 400 RPM, and the soft
shaft stops when the handle is released.
• Support is provided to adjust the height angle of the
machine for different work environment.
• Equipped with 570W motor.
• Rated Voltage:220V (110V optional) 50Hz,60Hz.
DRAIN CLEANING MACHINE , XDM-K50
XDM-K50 is Lightweight, strong, versatile and Portable
design suitable for drain lines of Ø20-100mm (3/4″- 4″) .
• Uses different cables of Ø8mm (5/16″) and 16mm(5/8″).
Soft shaft MF-2-A Ø8mm (5/16″) best for Ø20-50mm
drains.
• Uses Sectional Helical flexible shaft Ø16mm (5/8) best
for Ø32-100mm(1-1/4″-4″). The sectional cables can be
extended as required.
• Cable clutch ensures operator control, pull handle down
and cable spins speed at 400 RPM, and the soft shaft
stops when the handle is released.
• Equipped with 390W motor.
• Rated Voltage:220V (110V optional) 50Hz,60Hz.ELECTRO-HYDRAULIC GROOVER, STEED.12D1
STANDARD EQUIPMENT
Model STEED.12D1 grooving machine.
One 1”-1-1/2” Schedule 10/40 Roll Set.
One 2”-6” Schedule 10/40 Roll Set.
One 8”-12” Schedule 10/40 Roll Set.
Model MH1202 Pipe Support Stand.
*Supplied with Foot switch.
ELECTRO-HYDRAULIC GROOVER, STEED.12F
The Steed.12F Roll-groover, powered by 1700W induction motor, hydraulic pump and convenient depth adjusting function, which is capable of grooving 2”-12” Sch 10 and 2”-10” Sch 40 standard wall pipes. “Separate knurling roll- er” design of drive shaft for convenient replacement changing. The machine comes with a wheel trolley stand, and the unit can be setup quickly. The induction motor en- sures steady and quiet operation.
SPECIFICATIONS
Power groover 2″-12″ Steel /SS ( Sch10/40 2″-12”)
Motor: 1700w induction Speed: 24 RPMStandard roll set: 2″-6″, 8″-12″ Net weight: 130kg
STANDARD EQUIPMENT
Model STEED.12F grooving machine.
One 2”-6” Schedule 10/40 Roll Set.
One 8”-12” Schedule 10/40 Roll Set
Model MH1202 Pipe Support Stand & Foot switch.
FABRICATOR STAND W/ ROLLER HEAD & CASTER
Operating Height with casters :
32″(82cm)-39″(100cm)
Operating Height w/out casters:
23″(59cm)-30″(77mm)
4 legged stand for fix up, rotatingand welding. hold 4”-36”pipes . Ad-
justable Height with 8”castorwheels. Capacity : 1135Kg
Weight:
Frame: 9.2kg
V head assembly: 10.4 kg
Urethane caster:
3.35 kg x 4
Total : 33Kg

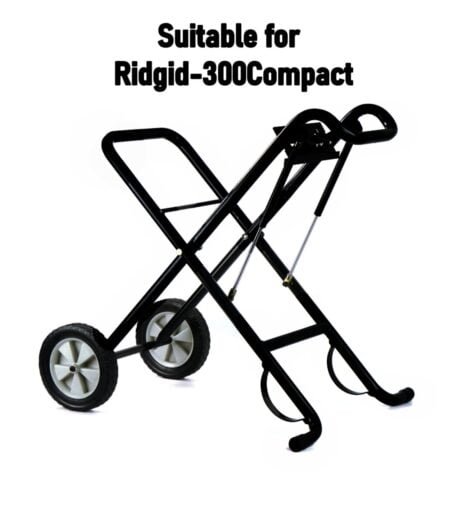

FOLDING WHEEL STAND FOR FLARE.2C/FLARE.3C
Folding wheel stand for Ridgid 300Compact, and macstroc Flare.2C/ Flare.3C pipe threading machines, convenient to use other Groove mountings.
CODE:MH6511
Grooving machine heavyduty, MRG-12V2
Presenting the Macstroc MRG-12V2 Heavy-Duty Roll Groover, a formidable solution equipped with a robust 1100W induction motor and hydraulic pump. This powerhouse is engineered with a convenient depth adjusting function, purpose-built for creating roll grooves on standard wall pipes spanning 2 to 12 inches with SCH10/SCH40 specifications. Its drive shaft design allows for effortless replacement, enhancing maintenance ease.
The MRG-12V2’s high-performance gear reduction motor not only ensures efficiency but also contributes to its compact form and reduced noise levels. With an induction motor for stable and quiet operation, this roll groover showcases Macstroc’s dedication to providing reliable solutions. Additionally, its capabilities extend to creating grooves even in pipes with a wall thickness of 10mm, underlining its versatility and adaptability for various applications.
With its heavy-duty design and cutting-edge features, the Macstroc MRG-12V2 Heavy-Duty Roll Groover is poised to excel in roll grooving tasks, demonstrating Macstroc’s unwavering commitment to delivering efficient, durable, and innovative solutions for your pipe grooving needs.
HEAVY-DUTY TUBE BENDER
Copper pipes, aluminum pipes, Iron pipe, stainless steel pipes, and other pipes. Heavy duty with ergonomic handle, and two stage design.
